Ivigo Professional Convector

Daily  Weekly Programmable and Ecodesign

Daily Weekly Programmable and Ecodesign

This smartest member of the convection heater family can be programmed for an entire week, with different settings per day, for weekdays and for weekends.

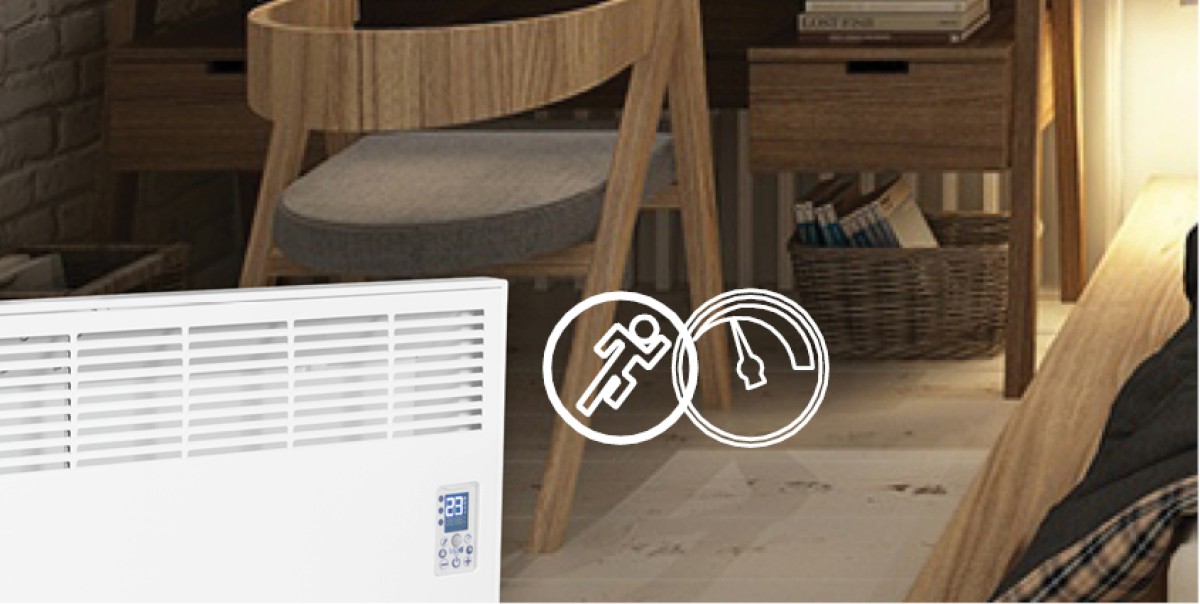

Motion Sensor and Energy Consumption Monitoring

Motion Sensor and Energy Consumption Monitoring

All of these features can be accessed with the simple press of a button located on the display. When the movement sensor is active, the heater automatically turns off when it does not detect movement, and resumes operation when there is movement in the room. The Energy Monitoring button conveniently provides information on the total runtime of the heater coil.

Set the Room Temperature for Each Hour

Set the Room Temperature for Each Hour

The Smart Start function does not only turn the device on and off automatically, but also enables you to set the room temperature for a specific time.

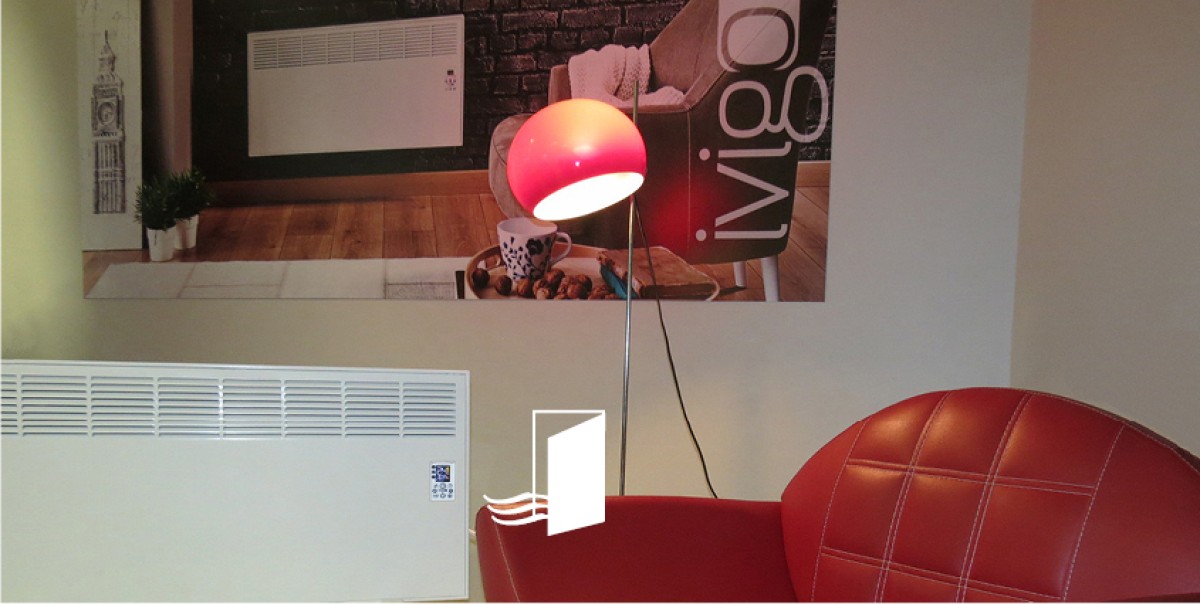

Pauses Automatically When Doors or Windows are Left Open

Pauses Automatically When Doors or Windows are Left Open

The heater turns off automatically when it detects a sudden drop in temperature.

Electric Panel Convector Heater Model Selection

The heat requirement depends on factors such as the exterior temperature, room heat isolation, door open/close cycles. The values stated on the above table are for average conditions with an outside temperature of 8-10 degrees therefore when calculating the heater power these factors should be taken into consideration.

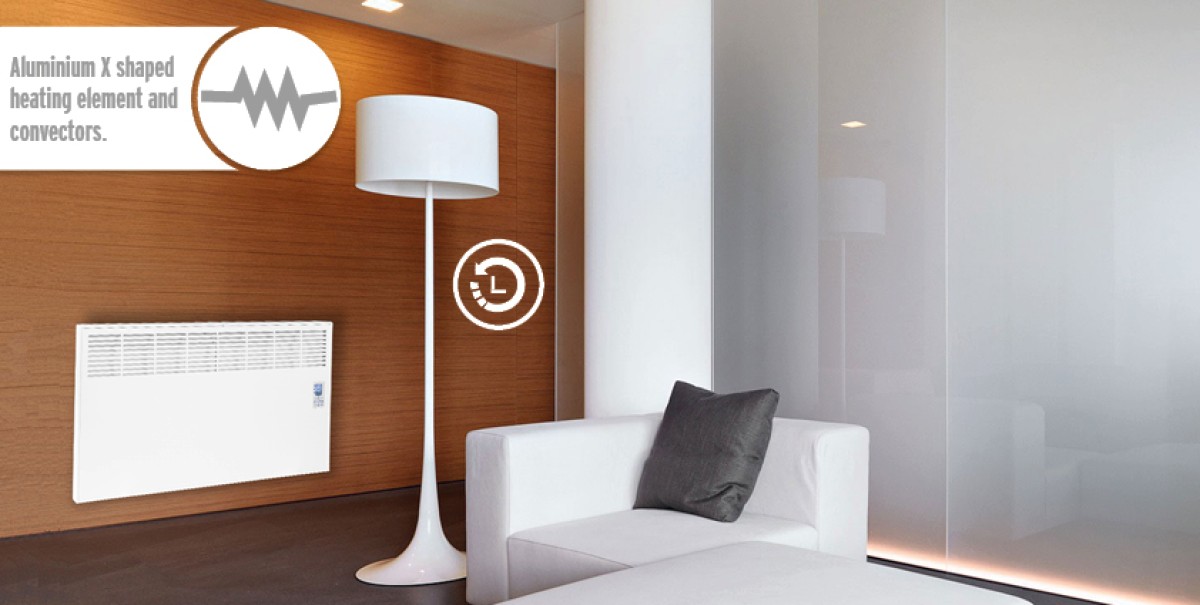

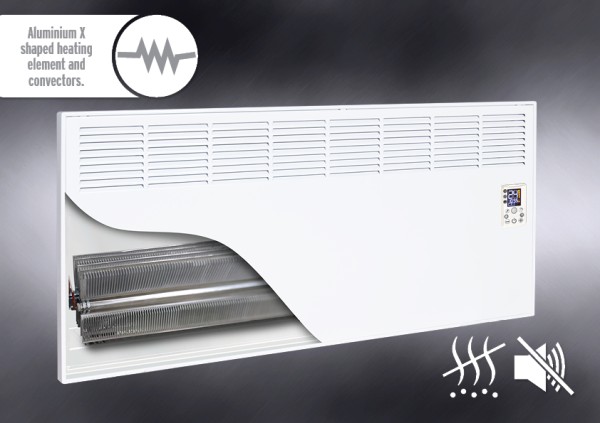

Aluminium X shaped heating element and convectors. Tin coating technology is used in our heater cables.Cable thickness: 2000-2500 Watt products; 3x1.50 mm2, 1000-1500 Watt products; 3x1.0 mm2

Professional Panel Convector

Type

EPK 4550P05

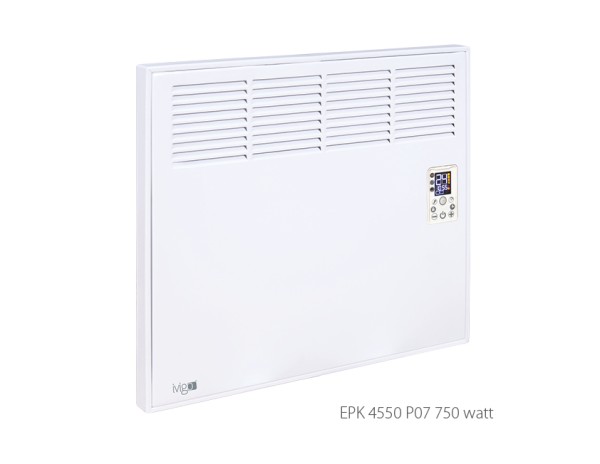

EPK 4550P07

EPK 4570P10

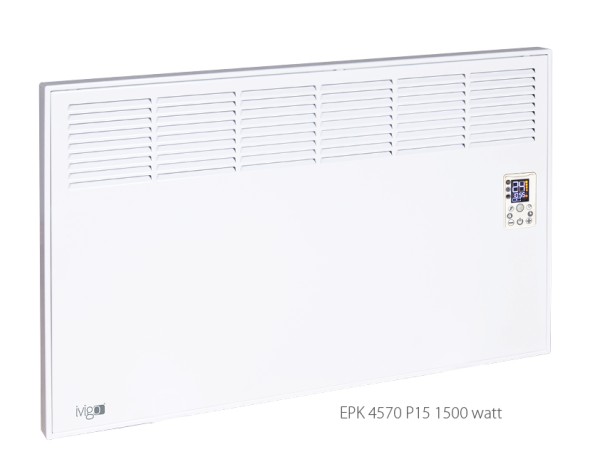

EPK 4570P15

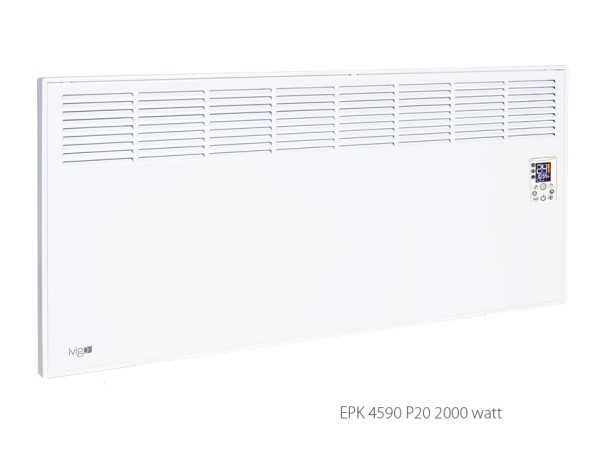

EPK 4590P20

EPK 4590P25

Height mm

450

450

450

450

450

450

Length mm

500

500

700

700

900

900

Depth mm

80

80

80

80

80

80

Weight kg

5.3

5.3

7.1

7.2

8.8

9.2

Electrical Power W

460-550

685-815

910-1085

1370-1630

1825-2150

2280-2720

Voltage V

220-240

220-240

220-240

220-240

220-240

220-240

Current A

2,07-2,26

3,11-3,40

4,13-4,52

6,23-6,80

8,3-8,96

10,40-11,34

Frequency Hz

50-60

50-60

50-60

50-60

50-60

50-60

Electronic Room

Temperature Control

Standard

Standard

Standard

Standard

Standard

Standard

Energy Saving Module (Programmable)

Standard

Standard

Standard

Standard

Standard

Standard

On/Off Switch

Standard

Standard

Standard

Standard

Standard

Standard

Cord Length m

1.5

1.5

1.5

1.5

1.5

1.5

Protection Type

I

I

I

I

I

I

Thermostat Against Excessive Heat

Standard

Standard

Standard

Standard

Standard

Standard

Rollover protection switch

Standard

Standard

Standard

Standard

Standard

Standard

Mechanical Thermostat Control

-

-

-

-

-

-

Energy Consumption Display

Standard

Standard

Standard

Standard

Standard

Standard

Room Temperature Display

Standard

Standard

Standard

Standard

Standard

Standard

Real Time Clock

Standard

Standard

Standard

Standard

Standard

Standard

Energy Consumption Monitoring

Standard

Standard

Standard

Standard

Standard

Standard

Daily / Weekly Program

Standard

Standard

Standard

Standard

Standard

Standard

Open Window Detection

Standard

Standard

Standard

Standard

Standard

Standard

Motion Sensor

Standard

Standard

Standard

Standard

Standard

Standard

Adaptive Start Feature

Standard

Standard

Standard

Standard

Standard

Standard

Anti-Frost

Standard

Standard

Standard

Standard

Standard

Standard

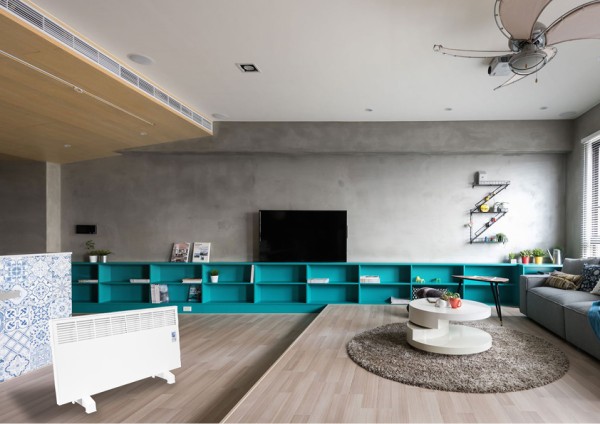

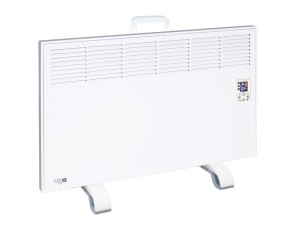

Plastic Legs

Standard

Standard

Standard

Standard

Standard

Standard

Wall Mounting Kit

Standard

Standard

Standard

Standard

Standard

Standard

Color Choices

White

White

White

White

White

White

Exclusive Keylocker

Optional

Optional

Optional

Optional

Optional

Optional



Standard : EN 60335-2-30
Material Structure : Cold Rolled Steel Iron  body: 0.80 mm, frame: 1.00 mm.
Surface  process : Our radiator has been produced in our modern facilities through surface cleaning + phosphatizing  followed by being painted with  water-based primer and electrostatic powder paint coating, and baked in 200°C without human touch.
Color : RAL9016 (Standart), White
Heating Unite Group : Aluminyum X type resistance and convectors
Quality Standard : CE, TUV, TS EN ISO 9001:2015
Heights : 450 mm
Lengths : 500-700-900 mm
Security : The product goes to functional test, earth loop continuity check, high voltage breakdown and leak current mesurement tests.
Guarantee : 3 Years



Basic Electric Panel Convector Heater Model Selection
Model Recommended Heater Power (watt) Room Area (m2)
EPK 4550 P05 500 3-6
EPK 4550 P07 750 4-9
EPK 4570 P10 1000 6-12
EPK 4570 P15 1500 9-17
EPK 4590 P20 2000 12-24
EPK 4590 P25 2500 14-28

Professional Convector | Guarantee

1. The Guarantee Period commences upon the delivery of the unit and is 3 years.

2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.

3. If the unit breaks down within the guarantee period thereof due to material or labor deficiency the repair will be made without any cost requirements under the title of labor cost, replaced part cost or any other title.

4. The customer may request the replacement of the unit, refunding, reduction in price pro rata to the defect under following conditions even if the consumer has used the repair right thereof:

- If the same defect repeats twice within one year as from the delivery of the unit to the client within the predetermined guarantee period or more than four breakdowns occur due to different reasons or if the total amount of the breakdowns due to different reason exceed 6 times causing the prevention of the usage of the unit continuously within the predetermined guarantee period

- If the maximum repair period is exceeded

- If it is determined by the service station or to the seller, dealer, agent, representative, importer or to the producer/manufacturer thereof if a service station does not exist, with a report that the repair of the unit is not possible

5. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.

EN 60335-2-30: 2011 A11: 2012
